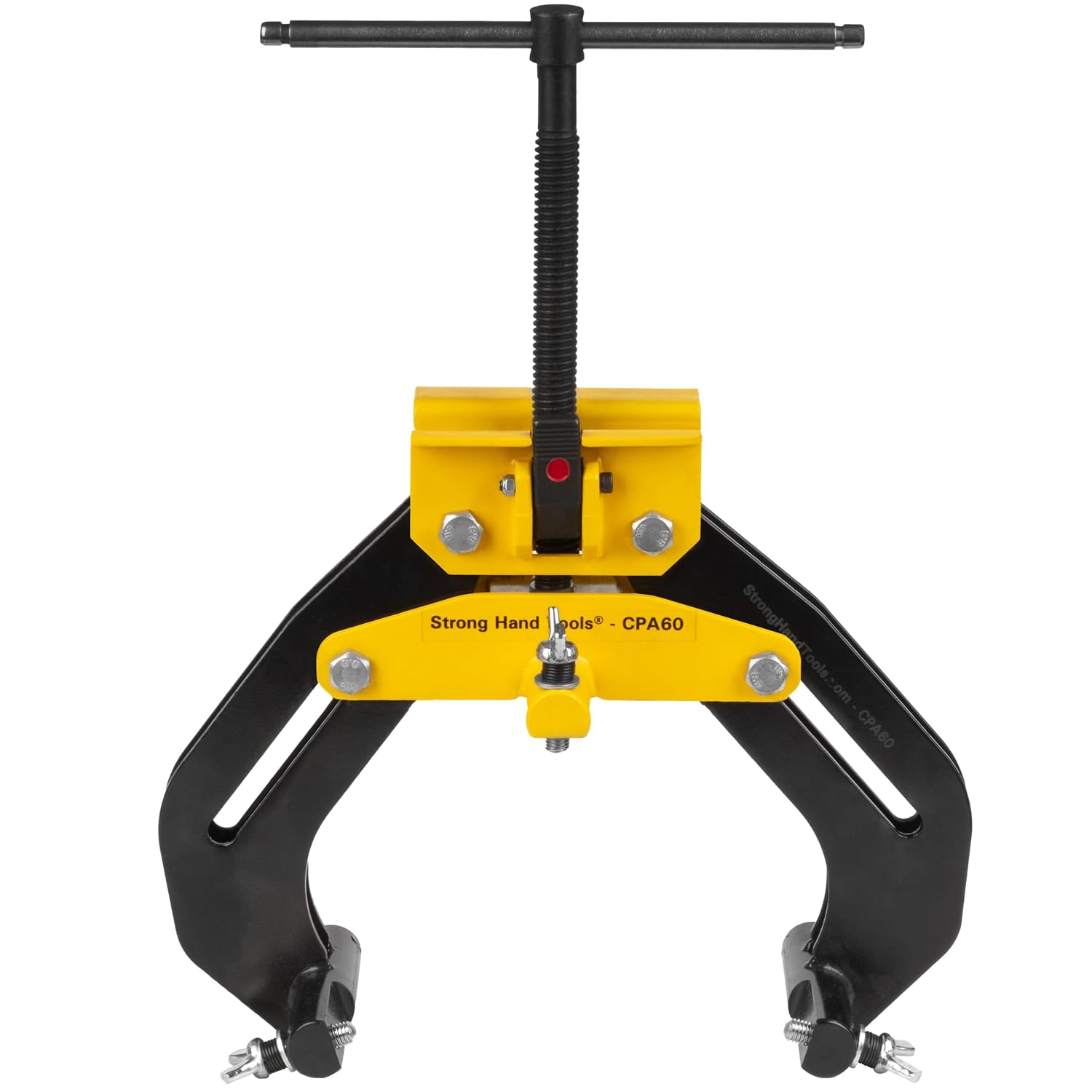

Pipe Alignment Clamp internal reference image

INTERNAL REFERENCE IMAGE · REPLACE BEFORE PUBLIC LAUNCH

PIPE TOOLS · FIT-UP & ALIGNMENT

Pipe Alignment Clamp

MODEL RG-PA60

A heavy-duty alignment clamp designed to hold ferrous pipe sections securely during welding fit-up and flange assembly.

OEM / ODM READYLogo, finish, packaging and engineering changes can be reviewed for your market and program volume.
Request a quote Download catalog

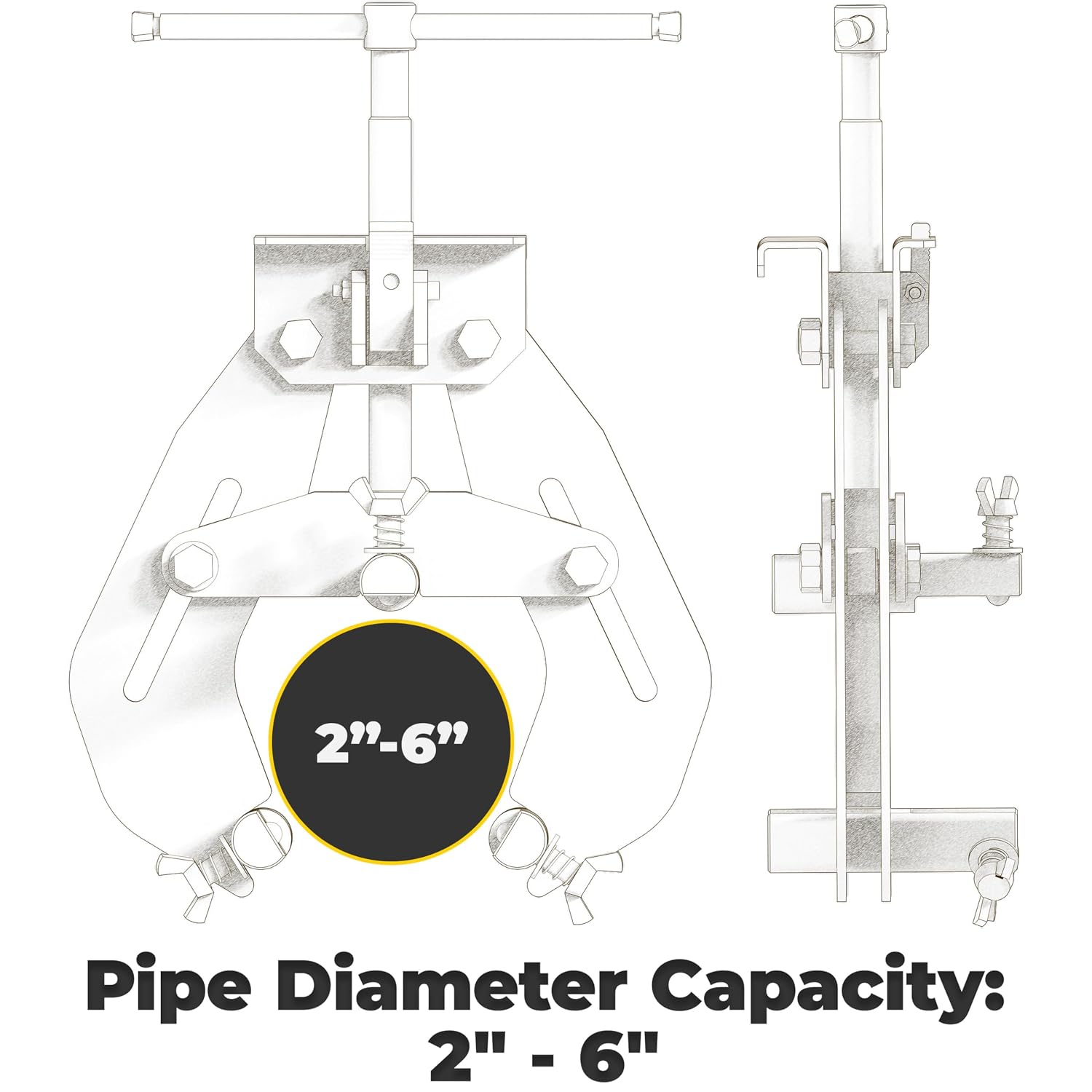

Pipe Alignment Clamp internal reference view 2
Internal reference view 02 · replace before public launch

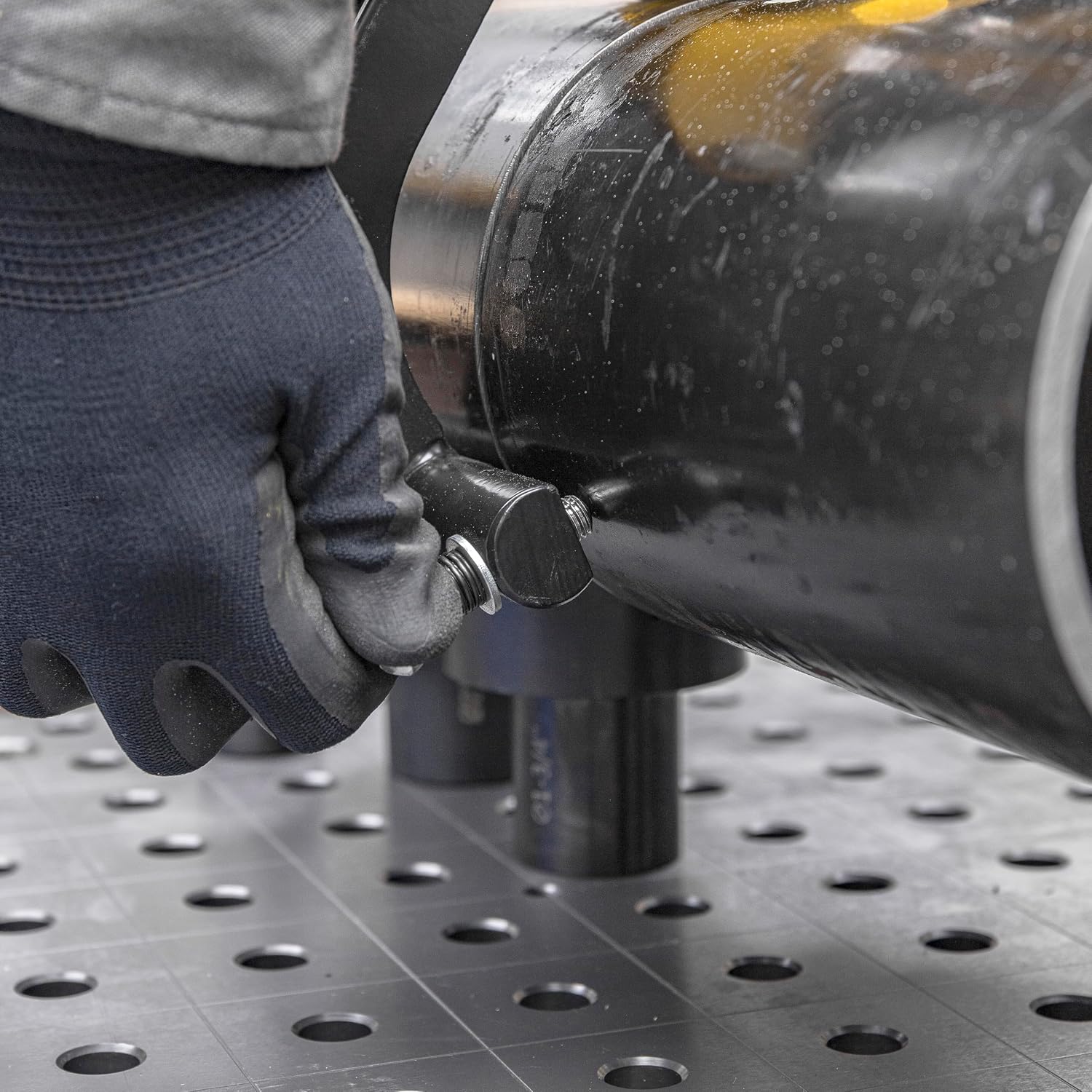

Pipe Alignment Clamp internal reference view 3
Internal reference view 03 · replace before public launch

TECHNICAL DATA

Working specification

Core product data for sourcing review. Final configuration and commercial terms are confirmed with each quotation.

Model
RG-PA60
Pipe capacity
2–6 in
Material
Stainless steel
Net weight
4.99 kg
Unit package
28 × 23 × 16 cm
MOQ / Lead time
100 pcs / approx. 35 days
01

Key advantages

Wide grip plates support balanced handling

Adjustable contact points accommodate a practical pipe range

Designed to reduce operator fatigue during fit-up work

02

Applications

Pipe welding fit-up; flange assembly; ferrous pipe installation and maintenance.

03

OEM / ODM program

Logo, finish, packaging and engineering changes can be reviewed against target quantity, price and market requirements.
