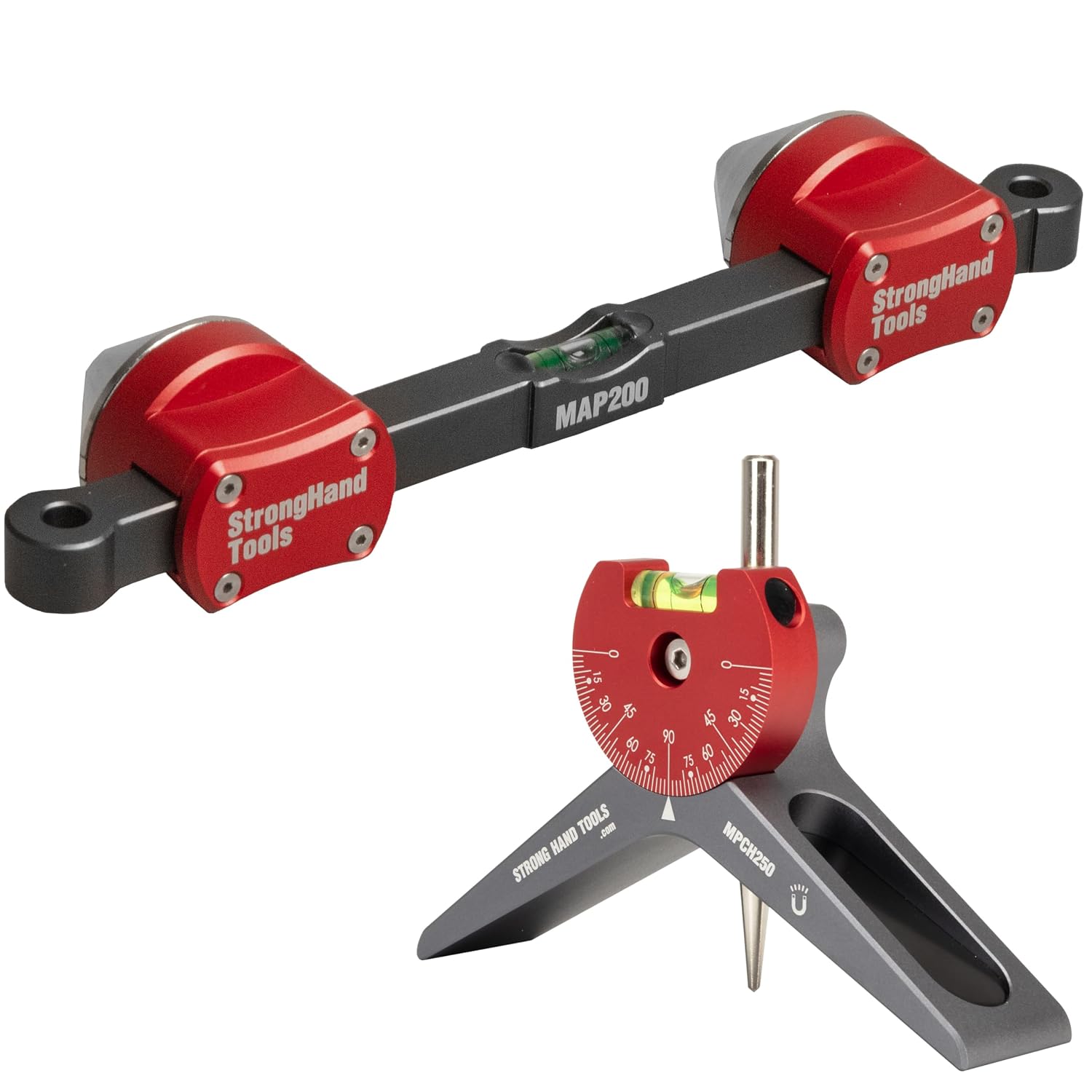

Magnetic Flange Aligner internal reference image

INTERNAL REFERENCE IMAGE · REPLACE BEFORE PUBLIC LAUNCH

PIPE TOOLS · FLANGE ALIGNMENT

Magnetic Flange Aligner

MODEL RG-CH300

A magnetic alignment aid for positioning, leveling and marking ferrous flanges during pipe fabrication and installation.

OEM / ODM READYLogo, finish, packaging and engineering changes can be reviewed for your market and program volume.
Request a quote Download catalog

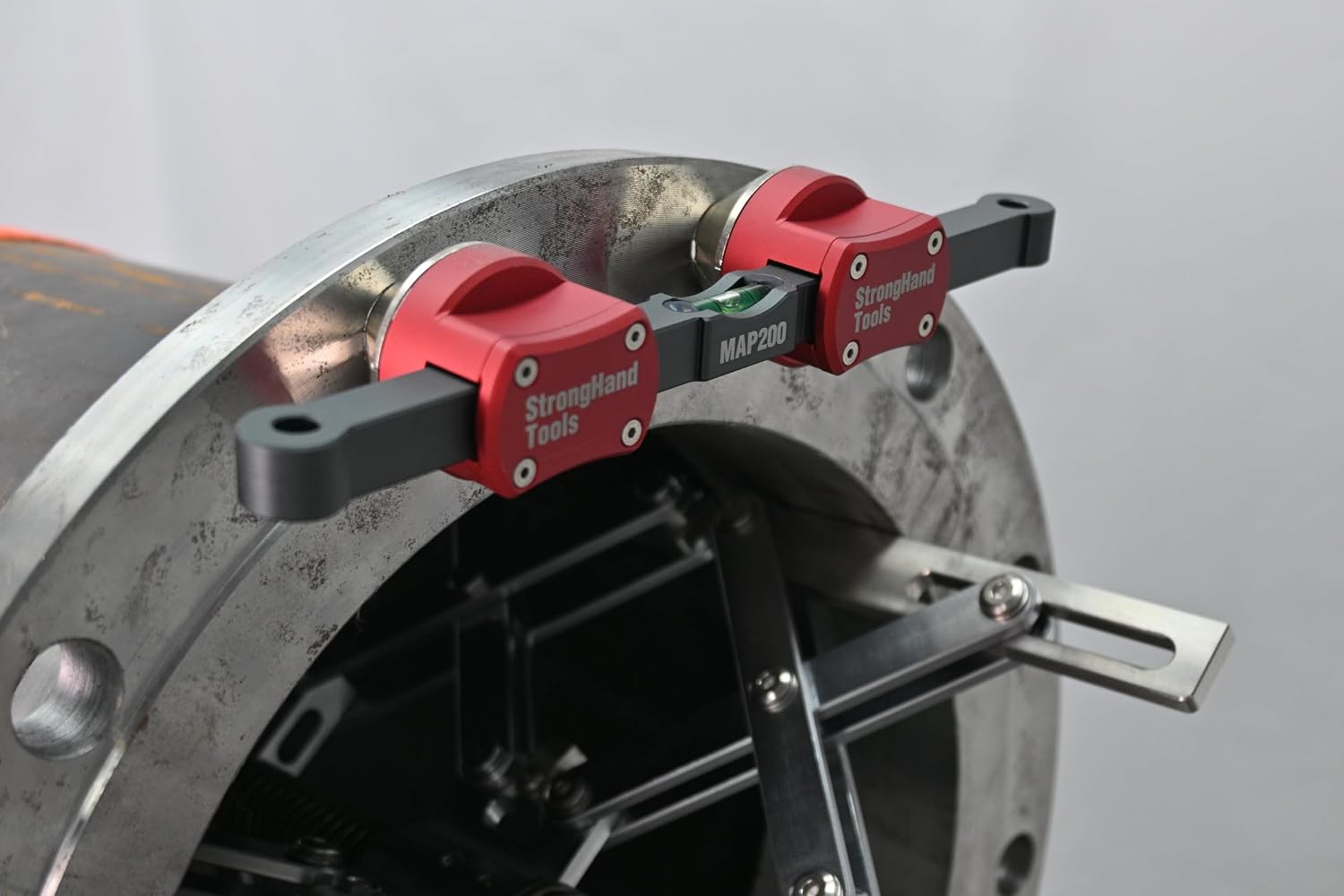

Magnetic Flange Aligner internal reference view 2
Internal reference view 02 · replace before public launch

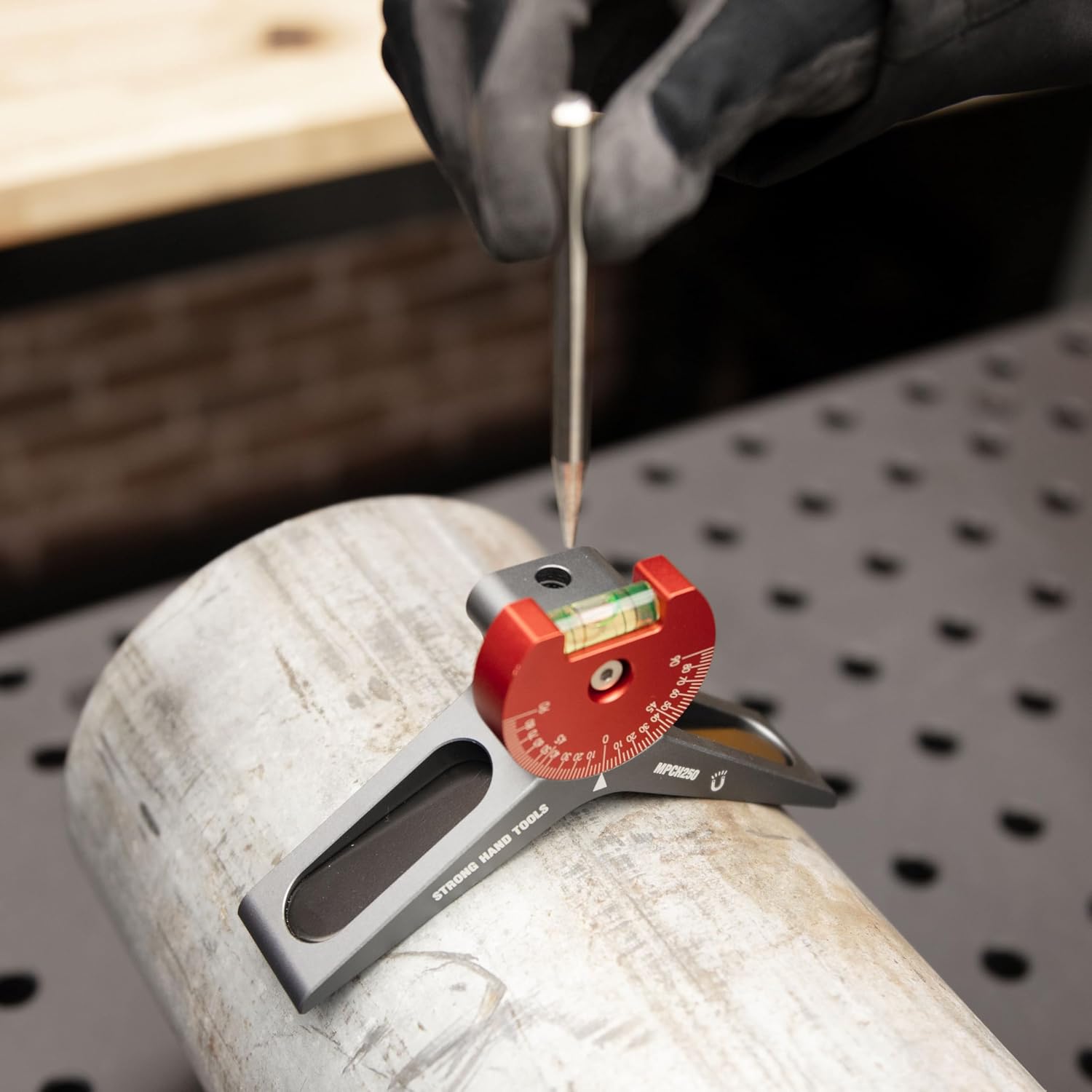

Magnetic Flange Aligner internal reference view 3
Internal reference view 03 · replace before public launch

TECHNICAL DATA

Working specification

Core product data for sourcing review. Final configuration and commercial terms are confirmed with each quotation.

Model
RG-CH300
Flange reference
Up to 2 in (pending verification)
Marking range
2–10 in pipe
Net weight
1.07 kg
Unit package
29 × 20 × 14 cm
MOQ / Lead time
100 sets / approx. 35 days
01

Key advantages

Fast magnetic positioning without threaded setup

Integrated level supports horizontal alignment

Designed for gloved operation in workshop and field conditions

02

Applications

Flange positioning; pipe marking; fabrication layout; ferrous pipe installation.

03

OEM / ODM program

Logo, finish, packaging and engineering changes can be reviewed against target quantity, price and market requirements.
