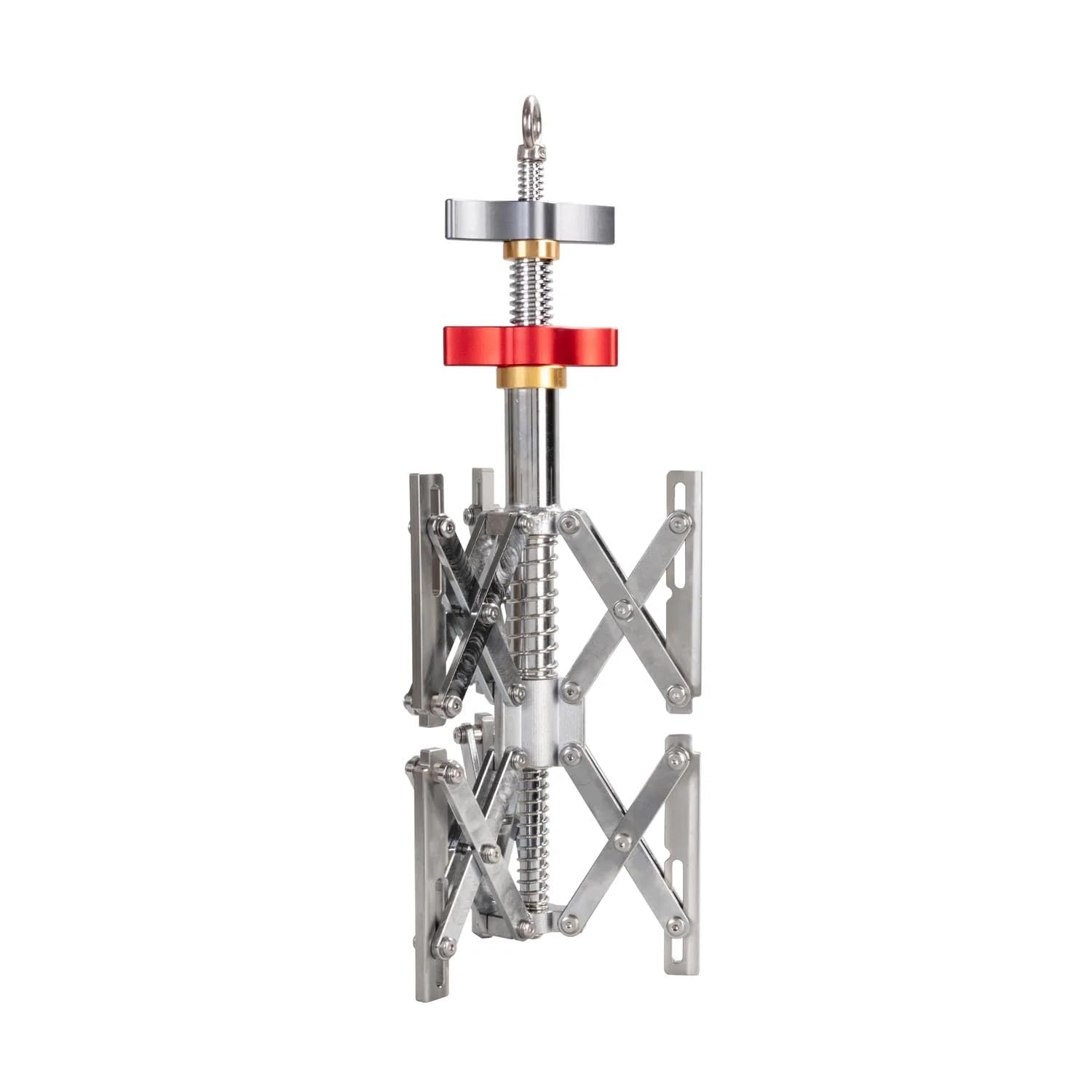

Internal Pipe Fit-Up Clamp internal reference image

INTERNAL REFERENCE IMAGE · REPLACE BEFORE PUBLIC LAUNCH

PIPE TOOLS · FIT-UP & ALIGNMENT

Internal Pipe Fit-Up Clamp

MODEL RG-SA480

An internal assembly clamp engineered to support accurate pipe-to-pipe and pipe-to-flange alignment before welding.

OEM / ODM READYLogo, finish, packaging and engineering changes can be reviewed for your market and program volume.
Request a quote Download catalog

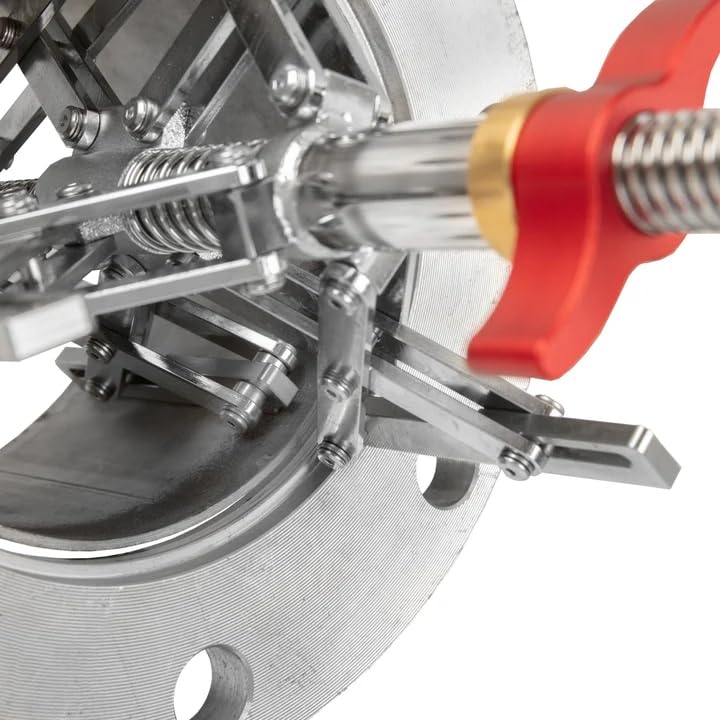

Internal Pipe Fit-Up Clamp internal reference view 2
Internal reference view 02 · replace before public launch
Internal Pipe Fit-Up Clamp internal reference view 3
Internal reference view 03 · replace before public launch

TECHNICAL DATA

Working specification

Core product data for sourcing review. Final configuration and commercial terms are confirmed with each quotation.

Model
RG-SA480
Configuration supplied
4 in
Material
Stainless steel
Net weight
2.70 kg
Unit package
43 × 26 × 12 cm
MOQ / Lead time
100 pcs / approx. 35 days
01

Key advantages

CNC-machined components support repeatable alignment

Stainless contact points suit fabrication environments

Dual locating-leg adjustment improves setup versatility

02

Applications

Pipe-to-pipe alignment; pipe-to-flange assembly; fabrication and welding preparation.

03

OEM / ODM program

Logo, finish, packaging and engineering changes can be reviewed against target quantity, price and market requirements.
